Brugnetti - Steam and hot water valves 2 PARTS TO FIT BRUGNETTI COFFEE MACHINES

620425-steam-valve-body 617123-steam-valve-stem 620426-steam-valve-complete 524558-copper-gasket 524965-cotter-pin 545309-lock-nut-1-2-inch-bsp 617523-steam-valve-complete-fitting-1mm-pitch 543424-washer-6x18mm 603918-steam-valve-spring 700273-o-ring 407060-spring 406508-sleeve 530015-steam-valve-sleeve 524767-viton-o-ring-r5 407001-o-ring 406509-steam-arm-pipe-nut 700525-stainless-steam-arm-pipe-millenium 634278-anti-burn-rubber-sleeves-for-8-10mm-steam-arms 633432-o-ring-stainless-steel-steam-tip 617528-n-black-knob-no-stop-1mm-pitch 616831-n-black-knob-top-section 613952-steam-symbol-cap 613942-water-symbol-cap 633429-male-stainless-steam-nozzle-with-2-holes-1-5mm 703472-m-steam-nozzle
Parts to Fit
Categories: Brugnetti
4 payments of $0
Buy now, Pay Later

SKU brugnetti-spare-parts-4
Steam and hot water valves
Brand Brugnetti

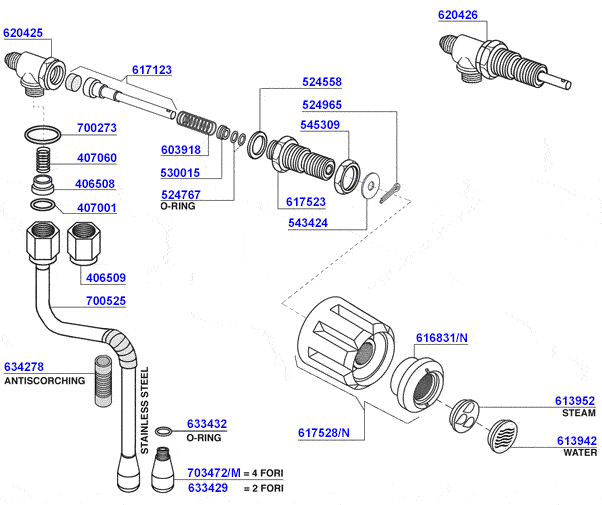

Select Parts from the Diagram above, or from the list below

Water/Steam Tap Joint Spring Guide - Ø 12/9x7x5mm
Water/Steam Tap Joint Spring Guide - Ø 12/9x7x5mm
to fit Brugnetti
SKU
406508
Units
Each
Add to Wishlist
$ 10 90
In Stock Ready for Dispatch
Steam arm/pipe nut 3/8
Steam arm/pipe nut 3/8
to fit Brugnetti
SKU
406509
Units
Each
Add to Wishlist
$ 13 90
In Stock Ready for Dispatch
O-Ring - 12.1mm x 2.7mm
O-Ring - 12.1mm x 2.7mm
to fit Brugnetti
SKU
407001
Units
Each
Add to Wishlist
$ 4 45
In Stock Ready for Dispatch
Spring
Spring
to fit Brugnetti
SKU
407060
Units
Each
Add to Wishlist
$ 7 45
In Stock Ready for Dispatch
Copper gasket Ø 22x16x2.5mm
Copper gasket Ø 22x16x2.5mm
to fit Brugnetti
SKU
524558
Units
Each
Add to Wishlist
$ 4 45
In Stock Ready for Dispatch
Viton O-Ring R5 5.7mm x 1.9mm
Viton O-Ring R5 5.7mm x 1.9mm
to fit Brugnetti
SKU
524767
Units
Each
Add to Wishlist
$ 4 45
In Stock Ready for Dispatch
Cotter pin
Cotter pin
to fit Brugnetti
SKU
524965
Units
Each
Add to Wishlist
$ 4 45
In Stock Ready for Dispatch
Steam valve sleeve
Steam valve sleeve
to fit Brugnetti
SKU
530015
Units
Each
Add to Wishlist
$ 5 45
In Stock Ready for Dispatch
Washer 6x18mm
Washer 6x18mm
to fit Brugnetti
SKU
543424
Units
Each
Add to Wishlist
$ 3 45
In Stock Ready for Dispatch
Lock nut 1/2 inch bsp
Lock nut 1/2 inch bsp
to fit Brugnetti
SKU
545309
Units
Each
Add to Wishlist
$ 5 45
In Stock Ready for Dispatch
Steam valve spring
Steam valve spring
to fit Brugnetti
SKU
603918
Units
Each
Add to Wishlist
$ 9 45
In Stock Ready for Dispatch
Water symbol cap
Water symbol cap
to fit Brugnetti
SKU
613942
Units
Each
Add to Wishlist
$ 9 45
In Stock Ready for Dispatch
Steam symbol cap
Steam symbol cap
to fit Brugnetti
SKU
613952
Units
Each
Add to Wishlist
$ 9 45
Out of Stock
Steam valve stem
Steam valve stem
to fit Brugnetti
SKU
617123
Units
Each
Add to Wishlist
$ 23 10
In Stock Ready for Dispatch
Steam valve complete fitting 1mm pitch
Steam valve complete fitting 1mm pitch
to fit Brugnetti
SKU
617523
Units
Each
Add to Wishlist
$ 35 20
In Stock Ready for Dispatch
Steam valve body
Steam valve body
to fit Brugnetti
SKU
620425
Units
Each
Add to Wishlist
$ 22 90
In Stock Ready for Dispatch
Steam valve complete
Steam valve complete
to fit Brugnetti
SKU
620426
Units
Each
Add to Wishlist
$ 68 00
Out of Stock
Male stainless steam nozzle with 2-holes 1.5mm
Male stainless steam nozzle with 2-holes 1.5mm
to fit Brugnetti
SKU
633429
Units
Each
Add to Wishlist
$ 18 25
In Stock Ready for Dispatch
O-ring stainless steel steam tip
O-ring stainless steel steam tip
to fit Brugnetti
SKU
633432
Units
Each
Add to Wishlist
$ 4 45
In Stock Ready for Dispatch
Anti-Burn Rubber Sleeves for 8-10mm Steam Arms Grip
Anti-Burn Rubber Sleeves for 8-10mm Steam Arms Grip
to fit Brugnetti
SKU
634278
Units
Each
Add to Wishlist
$ 7 45
In Stock Ready for Dispatch
O-ring
O-ring
to fit Brugnetti
SKU
700273
Units
Each
Add to Wishlist
$ 4 45
In Stock Ready for Dispatch
Stainless steam arm/pipe millenium
Stainless steam arm/pipe millenium
to fit Brugnetti
SKU
700525
Units
Each
Add to Wishlist
$ 49 90
Out of Stock
Black knob top section
Black knob top section
to fit Brugnetti
SKU
616831-n
Units
Each
Add to Wishlist
$ 16 90
In Stock Ready for Dispatch
Black knob no stop 1mm pitch
Black knob no stop 1mm pitch
to fit Brugnetti
SKU
617528-n
Units
Each
Add to Wishlist
$ 32 90
In Stock Ready for Dispatch
Steam nozzle (8.3mm male thread)
Steam nozzle (8.3mm male thread)
to fit Brugnetti
SKU
703472-m
Units
Each
Add to Wishlist
$ 18 25
In Stock Ready for Dispatch
