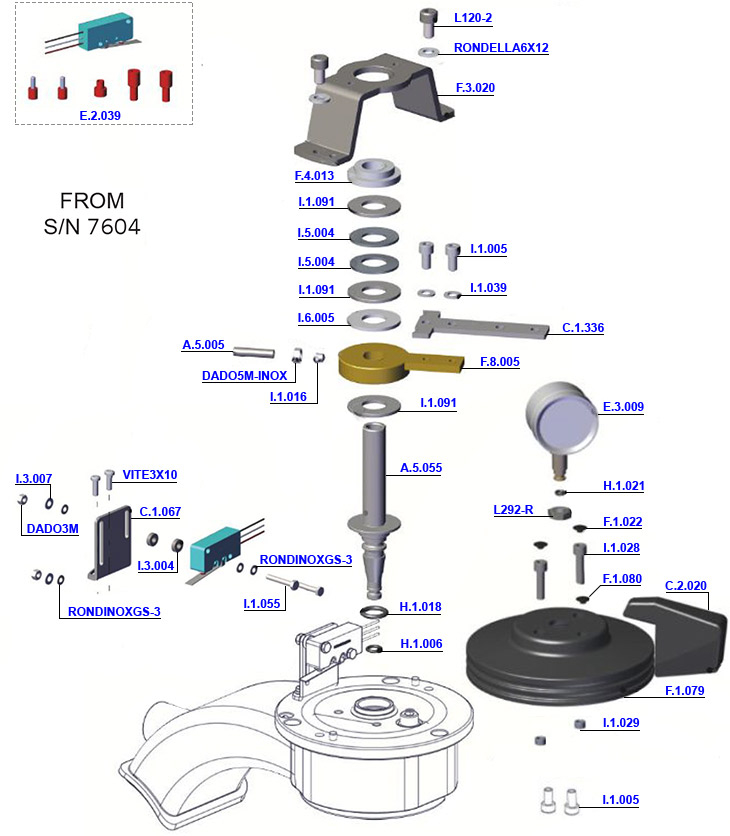

La Marzocco - GS3 MP Series 2 Paddle Assembly PARTS TO FIT LA MARZOCCO GS3 COFFEE MACHINES

La Marzocco - GS3 MP Series 2 Paddle Assembly lm-i1091-washer-14-2x30x2-s-s lm-i1005-5x10-socket-head-stainless-steel-bolt lm-f1029-steam-wand-bushing mp-mechanical-paddle-handle lm-rondinoxgs3-washer-3x6x0-5-s-s-a2 lm-l292r-hose-holder-fitting-gs3-1-8-chrome lm-i1016-stainless-steel-m5-grub-screw lm-h1021-o-ring-103 lm-a5055-shaft-conical-paddle-valve-gs3 cap-bolt-cover-for-paddle lm-i5004-belleville-spring lm-i5004-belleville-spring lm-dado5m-inox-nut-m5-h4-wr8-s-s-a2 lm-f1080-cap-d8-nylon-black lm-i1039-washer-5-4x10x1-s-s-a2 lm-i1029-cap-bolt-paddle-m5 lm-f4013-bush-lever-conical-paddle-valve-gs3 lm-i1028-cap-bolt-paddle-m5 lm-i1005-5x10-socket-head-stainless-steel-bolt lm-i1091-washer-14-2x30x2-s-s lm-c1336-extension-lever-puddle-conical-gs3 lm-i1055-screw-m3x20-hex-head-s-s-a2 lm-f3020-mechanical-paddle-mounting-bracket lm-rondella6x12-washer-6-4x12x1-5-s-s-a2 lm-l1202-hex-allen-screw-m6x10 lm-h1006-o-ring-adaptor lm-e3009-vertical-pressure-gauge-for-paddle lm-f8005-lever-conical-paddle-valve lm-vite3x10-screw-m3x10-phillips-round-pan-s-s-a2 lm-i1091-washer-14-2x30x2-s-s lm-e2039-microswitch-and-lug-kit lm-i3004-spacer-3-5x8x2-5-al m3-brass-nut lm-c1067-micro-support-paddle-switch lm-i3007-m3-serrated-lock-washer lm-h1018-or-109-2-110-in-epdm-70-sha lm-a5005-actuator-for-paddle-micro lm-i6005-washer-14-1x30x2-ptfe lm-rondinoxgs3-washer-3x6x0-5-s-s-a2
Parts to Fit
Categories: GS3 MP GS3 MP
4 payments of $0
Buy now, Pay Later

SKU la-marzocco-gs3-spare-parts-11
GS3 MP Paddle Assembly 2
Brand La Marzocco

Select Parts from the Diagram above, or from the list below

Valve Shaft Actuator
Valve Shaft Actuator
to fit La Marzocco
SKU
lm-a1010
Units
Each
Add to Wishlist
$ 119 00
Out of Stock
Valve Shaft Bushing
Valve Shaft Bushing
to fit La Marzocco
SKU
lm-a1014
Units
Each
Add to Wishlist
$ 59 00
Out of Stock
MP - Brass washer paddle valve.
MP - Brass washer paddle valve.
to fit La Marzocco
SKU
lm-a1015
Units
Each
Add to Wishlist
$ 46 90
Out of Stock
Brass nut hex 27 H5 paddle
Brass nut hex 27 H5 paddle
to fit La Marzocco
SKU
lm-a4003
Units
Each
Add to Wishlist
$ 22 10
Out of Stock
MP - Tectronic shaft for paddle valve shaft
MP - Tectronic shaft for paddle valve shaft
to fit La Marzocco
SKU
lm-a5003
Units
Each
Add to Wishlist
$ 209 00
In Stock Ready for Dispatch
Actuator for paddle micro
Actuator for paddle micro
to fit La Marzocco
SKU
lm-a5005
Units
Each
Add to Wishlist
$ 12 00
Out of Stock
S/Steel GS3 paddle group cap
S/Steel GS3 paddle group cap
to fit La Marzocco
SKU
lm-a5026
Units
Each
Add to Wishlist
$ 269 00
Out of Stock
Conical valve shaft
Conical valve shaft
to fit La Marzocco
SKU
lm-a5055
Units
Each
Add to Wishlist
$ 229 00
Out of Stock
Spacer-Paddle Oring - high polished
Spacer-Paddle Oring - high polished
to fit La Marzocco
SKU
lm-b201403
Units
Each
Add to Wishlist
$ 38 70
Out of Stock
Pump sail for S/Steel paddle
Pump sail for S/Steel paddle
to fit La Marzocco
SKU
lm-b201503
Units
Each
Add to Wishlist
$ 38 70
Out of Stock
Micro Support Paddle Switch
Micro Support Paddle Switch
to fit La Marzocco
SKU
lm-c1067
Units
Each
Add to Wishlist
$ 24 80
In Stock Ready for Dispatch
Extension lever paddle conical GS3
Extension lever paddle conical GS3
to fit La Marzocco
SKU
lm-c1336
Units
Each
Add to Wishlist
$ 24 80
Out of Stock
La Marzocco Linea Bakelite Paddle Handle
La Marzocco Linea Bakelite Paddle Handle
to fit La Marzocco
SKU
lm-c2020
Units
Each
Add to Wishlist
$ 44 20
In Stock Ready for Dispatch
M3 brass nut
M3 brass nut
to fit La Marzocco
SKU
lm-dado3m
Units
Each
Add to Wishlist
$ 5 40
In Stock Ready for Dispatch
Microswitch and lug kit
Microswitch and lug kit
to fit La Marzocco
SKU
lm-e2039
Units
Each
Add to Wishlist
$ 70 00
Out of Stock
Vertical Pressure Gauge for Paddle
Vertical Pressure Gauge for Paddle
to fit La Marzocco
SKU
lm-e3009
Units
Each
Add to Wishlist
$ 46 10
Out of Stock
Gigleur in Ruby for Cover 0.6mm
Gigleur in Ruby for Cover 0.6mm
to fit La Marzocco
SKU
lm-f2003
Units
Each
Add to Wishlist
$ 12 00
Out of Stock
Mechanical paddle mounting bracket
Mechanical paddle mounting bracket
to fit La Marzocco
SKU
lm-f3020
Units
Each
Add to Wishlist
$ 60 80
Out of Stock
Bush lever conical paddle valve
Bush lever conical paddle valve
to fit La Marzocco
SKU
lm-f4013
Units
Each
Add to Wishlist
$ 35 00
Out of Stock
Lever conical paddle valve
Lever conical paddle valve
to fit La Marzocco
SKU
lm-f8005
Units
Each
Add to Wishlist
$ 249 00
Out of Stock
O-ring Adaptor
O-ring Adaptor
to fit La Marzocco
SKU
lm-h1006
Units
Each
Add to Wishlist
$ 4 70
In Stock Ready for Dispatch
OR 109 - 2-110) IN EPDM - 70 SHA
OR 109 - 2-110) IN EPDM - 70 SHA
to fit La Marzocco
SKU
lm-h1018
Units
Each
Add to Wishlist
$ 4 70
Out of Stock
O-RING 103
O-RING 103
to fit La Marzocco
SKU
lm-h1021
Units
Each
Add to Wishlist
$ 4 70
In Stock Ready for Dispatch
O-RING VITON OR 2-117
O-RING VITON OR 2-117
to fit La Marzocco
SKU
lm-h1022
Units
Each
Add to Wishlist
$ 4 70
In Stock Ready for Dispatch
5X10 socket head S/Steel Bolt
5X10 socket head S/Steel Bolt
to fit La Marzocco
SKU
lm-i1005
Units
Each
Add to Wishlist
$ 6 40
In Stock Ready for Dispatch
S/Steel M5 Grub screw
S/Steel M5 Grub screw
to fit La Marzocco
SKU
lm-i1016
Units
Each
Add to Wishlist
$ 6 40
In Stock Ready for Dispatch
Cap bolt paddle M5
Cap bolt paddle M5
to fit La Marzocco
SKU
lm-i1028
Units
Each
Add to Wishlist
$ 15 60
Out of Stock
Cap bolt paddle M5
Cap bolt paddle M5
to fit La Marzocco
SKU
lm-i1029
Units
Each
Add to Wishlist
$ 14 60
Out of Stock
S/Steel washer 5x10x1
S/Steel washer 5x10x1
to fit La Marzocco
SKU
lm-i1039
Units
Each
Add to Wishlist
$ 12 90
Out of Stock
Washer 14, 2x30x2 s/s
Washer 14, 2x30x2 s/s
to fit La Marzocco
SKU
lm-i1091
Units
Each
Add to Wishlist
$ 23 80
Out of Stock
Distancer 3,5x8x2.5
Distancer 3,5x8x2.5
to fit La Marzocco
SKU
lm-i3004
Units
Each
Add to Wishlist
$ 6 40
In Stock Ready for Dispatch
M3 serrated lock washer
M3 serrated lock washer
to fit La Marzocco
SKU
lm-i3007
Units
Each
Add to Wishlist
$ 5 40
Out of Stock
Belleville spring
Belleville spring
to fit La Marzocco
SKU
lm-i5004
Units
Each
Add to Wishlist
$ 7 30
In Stock Ready for Dispatch
Washer 14, 1x30x2 PTFE
Washer 14, 1x30x2 PTFE
to fit La Marzocco
SKU
lm-i6005
Units
Each
Add to Wishlist
$ 23 80
Out of Stock
Bleed Screw
Bleed Screw
to fit La Marzocco
SKU
lm-l1202
Units
Each
Add to Wishlist
$ 6 40
In Stock Ready for Dispatch
Hose Holder Fitting GS3 1/8 Chrome
Hose Holder Fitting GS3 1/8 Chrome
to fit La Marzocco
SKU
lm-l292r
Units
Each
Add to Wishlist
$ 4 70
In Stock Ready for Dispatch
Stainless steel washer 6X12 1.5 thick
Stainless steel washer 6X12 1.5 thick
to fit La Marzocco
SKU
lm-rondella6x12
Units
Each
Add to Wishlist
$ 6 40
In Stock Ready for Dispatch
