Group head e61 lever operated PARTS TO FIT VBM COFFEE MACHINES

703008-teflon-gasket-16x22-5x2mm 524467-group-jet-e61 460000-t-teflon-ring 460001-brew-valve-pin 460007-holder-gasket 460002-brew-valve-assembly 547322-washer 519545-seal 460009-12mm-pin 526266-stainless-screw-m5x8 700325-copper-gasket 525745-stainless-screw-m6x14 513836-t-teflon-gasket 460000-gasket 460085-spring 460003-group-gasket 529575-stud-m8 513830-pin-cam 513836-t-teflon-gasket 513836-t-teflon-gasket 520129-steam-tip-group-e61 526100-e61-shower-screen 460012-group-stem-cam 460017-long-pin 518608-group-head-spacer 700883-group-head-seal 700883-5-group-head-seal 524552-copper-gasket-1-2-inch-bsp 547322-washer 460006-infusion-valve-assembly 519545-seal 460007-holder-gasket 460005-triangular-pin 520546-spring 619976-double-shower-head 460008-pin-14mm 460010-group-drain-valve-assembly 517849-spring 547322-washer 519545-seal 460007-holder-gasket 611297-pump-microswitch 526741-microswitch-e61 700739-knob 513831-micro-cam-rod 545328-stainless-blind-nut 518543-spring 460079-sleeve 602576-gasket-15-5x7-5x4mm
Parts to Fit
Categories: Vibiemme
4 payments of $0
Buy now, Pay Later

SKU vbm-home-spare-parts-1
Group head e61 lever operated
Brand VBM

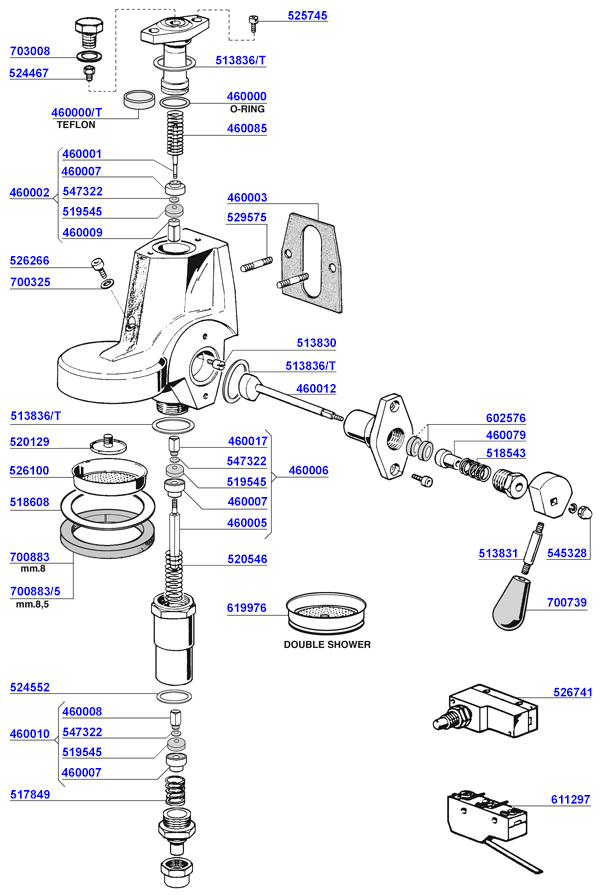

Select Parts from the Diagram above, or from the list below

IMS Nano Quartz Coated Shower Screen - to fit E61 Group Heads
IMS Nano Quartz Coated Shower Screen - to fit E61 Group Heads
to fit VBM
SKU
522004-nt
Units
Each
Add to Wishlist
$ 49 90
Out of Stock
IMS e61 Competition Shower Screen - to fit E61 groups
IMS e61 Competition Shower Screen - to fit E61 groups
to fit VBM
SKU
525001
Units
Each
Add to Wishlist
$ 34 90
Out of Stock
CP E61 Blue Silicon Group Head Gasket Seal 73x57x8.5mm
CP E61 Blue Silicon Group Head Gasket Seal 73x57x8.5mm
to fit VBM
SKU
516526
Units
Each
Add to Wishlist
$ 12 90
In Stock Ready for Dispatch
CP E61 Red Silicon Group Head Gasket Seal 73x57x8mm
CP E61 Red Silicon Group Head Gasket Seal 73x57x8mm
to fit VBM
SKU
516525
Units
Each
Add to Wishlist
$ 12 90
In Stock Ready for Dispatch
Brewing Group Type E61 Gasket Ø 20x2.62mm
Brewing Group Type E61 Gasket Ø 20x2.62mm
to fit VBM
SKU
460000
Units
Each
Add to Wishlist
$ 5 45
In Stock Ready for Dispatch
Teflon ring
Teflon ring
to fit VBM
SKU
460000-t
Units
Each
Add to Wishlist
$ 6 45
In Stock Ready for Dispatch
Brewing Group E61 Type Valve "Brass" Round Pin - M4 - Ø 4.5x35/30mm
Brewing Group E61 Type Valve "Brass" Round Pin - M4 - Ø 4.5x35/30mm
to fit VBM
SKU
460001
Units
Each
Add to Wishlist
$ 10 90
In Stock Ready for Dispatch
Brew Valve Assembly 55mm
Brew Valve Assembly 55mm
to fit VBM
SKU
460002
Units
Each
Add to Wishlist
$ 37 90
In Stock Ready for Dispatch
Brewing Group E61 Flange Gasket - 76.5x72.5x2mm
Brewing Group E61 Flange Gasket - 76.5x72.5x2mm
to fit VBM
SKU
460003
Units
Each
Add to Wishlist
$ 9 45
Out of Stock
Triangular pin
Triangular pin
to fit VBM
SKU
460005
Units
Each
Add to Wishlist
$ 8 45
In Stock Ready for Dispatch
Infusion valve assembly
Infusion valve assembly
to fit VBM
SKU
460006
Units
Each
Add to Wishlist
$ 31 90
In Stock Ready for Dispatch
Brewing Group Type E61 Valve Gasketholder - Ø 16/10x13x13.2mm
Brewing Group Type E61 Valve Gasketholder - Ø 16/10x13x13.2mm
to fit VBM
SKU
460007
Units
Each
Add to Wishlist
$ 12 60
In Stock Ready for Dispatch
Brewing Group Type E61 Drain Valve Triangular Pin - M3 - 7x14mm
Brewing Group Type E61 Drain Valve Triangular Pin - M3 - 7x14mm
to fit VBM
SKU
460008
Units
Each
Add to Wishlist
$ 5 45
In Stock Ready for Dispatch
Group Supply Valve Square Pin - 6x12mm
Group Supply Valve Square Pin - 6x12mm
to fit VBM
SKU
460009
Units
Each
Add to Wishlist
$ 5 45
In Stock Ready for Dispatch
Group Drain Valve Assembly 27mm
Group Drain Valve Assembly 27mm
to fit VBM
SKU
460010
Units
Each
Add to Wishlist
$ 27 90
In Stock Ready for Dispatch
E61 Model Group Head Stem Cam - M6 - Ø 8x85mm
E61 Model Group Head Stem Cam - M6 - Ø 8x85mm
to fit VBM
SKU
460012
Units
Each
Add to Wishlist
$ 34 90
In Stock Ready for Dispatch
Long pin
Long pin
to fit VBM
SKU
460017
Units
Each
Add to Wishlist
$ 9 90
In Stock Ready for Dispatch
Sleeve
Sleeve
to fit VBM
SKU
460079
Units
Each
Add to Wishlist
$ 9 45
In Stock Ready for Dispatch
Pin cam
Pin cam
to fit VBM
SKU
513830
Units
Each
Add to Wishlist
$ 7 45
Out of Stock
Micro cam rod
Micro cam rod
to fit VBM
SKU
513831
Units
Each
Add to Wishlist
$ 10 20
Out of Stock
Teflon gasket
Teflon gasket
to fit VBM
SKU
513836-t
Units
Each
Add to Wishlist
$ 5 45
In Stock Ready for Dispatch
Drain Valve Spring Ø 14.5x10.55x34mm
Drain Valve Spring Ø 14.5x10.55x34mm
to fit VBM
SKU
517849
Units
Each
Add to Wishlist
$ 9 45
In Stock Ready for Dispatch
Spring
Spring
to fit VBM
SKU
518543
Units
Each
Add to Wishlist
$ 9 45
In Stock Ready for Dispatch
Group head spacer/shim 72x59x0.8mm
Group head spacer/shim 72x59x0.8mm
to fit VBM
SKU
518608
Units
Each
Add to Wishlist
$ 2 45
In Stock Ready for Dispatch
Brewing Group Valve Gasket Seal - Ø 13x4x4mm
Brewing Group Valve Gasket Seal - Ø 13x4x4mm
to fit VBM
SKU
519545
Units
Each
Add to Wishlist
$ 5 45
In Stock Ready for Dispatch
Spout Breaker E61 30mm M10x1
Spout Breaker E61 30mm M10x1
to fit VBM
SKU
520129
Units
Each
Add to Wishlist
$ 19 90
In Stock Ready for Dispatch
Spring
Spring
to fit VBM
SKU
520546
Units
Each
Add to Wishlist
$ 10 90
In Stock Ready for Dispatch
E61 Type Group Head Jet - M6x0.75mm - Hole Ø 0.6mm
E61 Type Group Head Jet - M6x0.75mm - Hole Ø 0.6mm
to fit VBM
SKU
524467
Units
Each
Add to Wishlist
$ 9 45
Out of Stock
Copper gasket 1/2 inch bsp
Copper gasket 1/2 inch bsp
to fit VBM
SKU
524552
Units
Each
Add to Wishlist
$ 4 45
Out of Stock
Stainless screw m6x14mm
Stainless screw m6x14mm
to fit VBM
SKU
525745
Units
Each
Add to Wishlist
$ 7 45
In Stock Ready for Dispatch
E61 Shower Screen
E61 Shower Screen
to fit VBM
SKU
526100
Units
Each
Add to Wishlist
$ 12 90
In Stock Ready for Dispatch
Stainless screw m5x8mm
Stainless screw m5x8mm
to fit VBM
SKU
526266
Units
Each
Add to Wishlist
$ 3 85
In Stock Ready for Dispatch
Microswitch e61
Microswitch e61
to fit VBM
SKU
526741
Units
Each
Add to Wishlist
$ 39 60
Out of Stock
Stud m8
Stud m8
to fit VBM
SKU
529575
Units
Each
Add to Wishlist
$ 5 45
Out of Stock
Stainless blind nut
Stainless blind nut
to fit VBM
SKU
545328
Units
Each
Add to Wishlist
$ 6 45
In Stock Ready for Dispatch
Brewing Group Valve Flat Washer- Ø 7x3x0.5mm
Brewing Group Valve Flat Washer- Ø 7x3x0.5mm
to fit VBM
SKU
547322
Units
Each
Add to Wishlist
$ 4 45
In Stock Ready for Dispatch
Gasket 15.5x7.5x4mm
Gasket 15.5x7.5x4mm
to fit VBM
SKU
602576
Units
Each
Add to Wishlist
$ 6 45
Out of Stock
Pump microswitch
Pump microswitch
to fit VBM
SKU
611297
Units
Each
Add to Wishlist
$ 35 20
Out of Stock
Double shower screen
Double shower screen
to fit VBM
SKU
619976
Units
Each
Add to Wishlist
$ 27 80
Out of Stock
Copper Gasket Ø 9.8x6.2x1mm
Copper Gasket Ø 9.8x6.2x1mm
to fit VBM
SKU
700325
Units
Each
Add to Wishlist
$ 4 45
In Stock Ready for Dispatch
Brewing Group Type E61 Control Lever Knob - M8
Brewing Group Type E61 Control Lever Knob - M8
to fit VBM
SKU
700739
Units
Each
Add to Wishlist
$ 26 90
In Stock Ready for Dispatch
Group Head Gasket/Seal 73x57x8mm
Group Head Gasket/Seal 73x57x8mm
to fit VBM
SKU
700883
Units
Each
Add to Wishlist
$ 7 90
In Stock Ready for Dispatch
Group head gasket/seal 73x57x8.5mm
Group head gasket/seal 73x57x8.5mm
to fit VBM
SKU
700883-5
Units
Each
Add to Wishlist
$ 7 90
Out of Stock
Teflon gasket 16x22.5x2mm
Teflon gasket 16x22.5x2mm
to fit VBM
SKU
703008
Units
Each
Add to Wishlist
$ 3 85
In Stock Ready for Dispatch
